Pre-insulated tub-e® FRIGO copper tubes
for high performance single and multi split air conditioning and refrigeration systems
The ever increasing costs of energy and concerns for the environment will continue to have a direct influence on the development of HVAC technology. More environmentally friendly refrigerants have been taken into use. The needs to reduce installation time and increase perfomance remain clear targets for the industry.

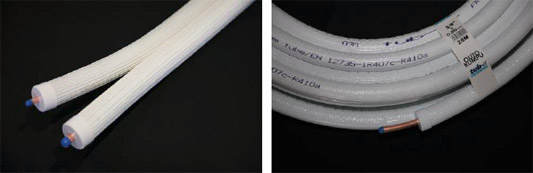

tub-e® FRIGO –Single and Twin have been developed with leading European insulation specialist to fulfil these needs. Our joint expertise has been used to bring some unique properties which enhance use of this range throughout the supply chain All three components are extruded –from the tub-e® refrigeration quality copper tube, the closed cell CFC and HCFC free PE foam, to the pure white, high definition PE skin. This means there are no seams or points of weakness. In addition, some of the highest UV resistance levels (Sirris test certifcate n° GT8-1565) mean that longer-lasting performance and high energy efficiency prevail.
Attention has been paid to ensure that these advantages are maintained –Each coil is bound by paper tapes which can be easily removed by hand to avoid any damage, plastic end caps are provided to help reduce risks of condensation, and a special adhesive is used to join the tub-e® FRIGO Twin to avoid destroying the vital protective PE layer during installation.

Why tub-e® FRIGO?
For all high performance refrigeration and airconditioning applications…

  • More economical and more ecological choice
  • High quality thermal insulation reduces energy losses in the system
  • Quick and easy to install – fully adapted to current installation methods and connection techniques
  • Reduce waste of insulation material on site
  • Prevents condensation
  • Fire-resistant foam
  • One of the highest UV protection levels on the market
  • Compatible for use with modern refrigerants

Efficient and economical - saves installation time on site

Suitable for a wide range of modern refrigerants
tub-e® FRIGO is suitable for use with a wide range of modern refrigerants:

  • chlorine free HFC (e.g. R134a, R404A, R507A, R407C, R410A)
  • Carbon dioxide CO2
Material
tub-e® FRIGO copper tube is manufactured from Cu-DHP copper, and complies fully with the standard EN
12735-1.

Chemical properties
Cu+Ag > 99,90 %
0,015 % < P < 0,040 %

Insulation is made of foamed polyethylene and covered with a PE structured sheet. It is CFC free and contains no PVC. Insulation material is fire retardant and withstands high temperature variations and UV radiation.

Installation methods
tub-e® FRIGO is adapted to all current copper tube installation methods and connection techniques. When using a soldered joint, around 15cm of the insulation material needs to be peeled back and temporarily secured.

When the soldering has cooled the insulation material can be unfastened and used to cover the copper tube.
Please pay attention to avoid any damage to the tube.

Mechanical and physical properties
Properties Test method Unit Value
Density DIN EN ISO 845 Kg/m3 30 ±3
Tensile strength ISO 1798 N/mm2 0,35
Elongation at break ISO 1798 % 60
Thermal conductivity (λ) DIN 52613 W/mK 0,040 at 40 ºC
Thermal resistance (24h at 70 ºC) EN 14707 % 100
Water absorption (after 24h) DIN 52615 μ <16.000
Compression resistance (lab. test) ISO 3386/1 (20%) N/mm2 0,06
Fire resistance DIN 4102 Class B2
Working temperature range   ºC -40 to +95
Maximum temperature range   ºC -40 to +105

Pre-insulated tub-e® FRIGO Single range
Copper tube
outside
diameter
(inches)
 Copper tube
wall
thickness
(mm)		 Theoretical
weight
(gr/m)		 Nominal utilisation
pressure
under 65 ºC
(bar)		 Insulation
thickness
(mm)
1/4 0,8 124 135 9
3/8 0,8 195 84 9
1/2 0,8 266 62 9
5/8 1,0 416 62 9
3/4 1,0 505 51 9
7/8 1,0 593 40 9

Pre-insulated tub-e® FRIGO Twin range
Copper
tube
outside
diameter
(inches)
 Copper
tube wall
thickness
(mm)		 Insulation
thickness
(mm)		   Copper
tube
outside
diameter
(inches)		 Copper
tube wall
thickness
(mm)		 Insulation
thickness
(mm)
1/4 0,8 9 + 3/8 0,8 9
1/4 0,8 9 + 1/2 0,8 9
1/4 0,8 9 + 5/8 1,0 9
3/8 0,8 9 + 5/8 1,0 9
3/8 0,8 9 + 3/4 1,0 9

Packaging
tub-e® FRIGO pre-insulated tubes are delivered in soft coils on easy to handle stackable pallets
Product Coil length
tub-e® FRIGO Single
 25 meters
tub-e® FRIGO Twin 20 meters
